Understanding Elastomer Moulding – A Comprehensive Overview

Elastomer moulding is a fascinating process that has revolutionised the manufacturing industry. As we delve into this comprehensive guide, I’ll take you through the intricacies of this versatile technique. Elastomers, known for their remarkable flexibility and resilience, have become indispensable in countless applications across various sectors.

In this article, we’ll explore the science behind elastomers, the different moulding processes, and the wide array of applications that benefit from this technology. Whether you’re a seasoned engineer or simply curious about the world of materials science, this guide will provide you with valuable insights into the elastomer moulding.

elastomer moulding

The Science Behind Elastomers: Properties and Characteristics

Elastomers are a unique class of polymers that possess extraordinary elastic properties. These materials can stretch to several times their original length and then return to their initial shape when the applied force is removed. This remarkable behaviour is due to their molecular structure, which consists of long, flexible polymer chains cross-linked at various points.

The key characteristics that make elastomers so valuable in manufacturing include:

  • Elasticity: The ability to deform under stress and return to their original shape
  • Resilience: The capacity to absorb energy and release it upon unloading
  • Durability: Resistance to wear, tear, and environmental factors
  • Flexibility: The ability to bend and conform to various shapes without breaking

These properties are influenced by factors such as:

  • Molecular weight
  • Cross-link density
  • Filler materials
  • Processing conditions

Understanding these fundamental aspects of elastomers is crucial for selecting the right material and moulding process for specific applications. As we progress through this guide, we’ll see how these properties come into play in different moulding techniques and end-use products.

rubber moulding tensile strength

Key Elastomer Moulding Processes Explained

Elastomer moulding encompasses several distinct processes, each with its own set of advantages and limitations. Let’s explore some of the most common techniques:

elastomer tubber mouldingCompression Moulding

  • Raw material is placed directly into a heated mould cavity
  • Pressure is applied to force the material to conform to the mould shape
  • Ideal for large, simple shapes and low-volume production

Transfer Moulding

  • Similar to compression moulding, but the material is preheated before transfer
  • Suitable for more complex shapes and tighter tolerances

Injection Moulding

  • Melted elastomer is injected into a closed mould under high pressure
  • Allows for high-volume production and complex geometries
  • rubber mouldingExcellent for consistent part quality and minimal material waste

Extrusion Moulding

  • Continuous process where elastomer is forced through a die to create long profiles
  • Ideal for producing seals, gaskets, and tubing

Each of these processes has its place in the elastomer moulding industry, and the choice depends on factors such as part complexity, production volume, and material properties. In the following sections, we’ll delve deeper into some of these techniques and their specific applications.





Compression Moulding vs. Injection Moulding: Which is Best for Elastomers?

When it comes to elastomer moulding, two processes often stand out: compression moulding and injection moulding. Both have their merits, and the choice between them depends on various factors. Let’s compare these two methods to help you understand which might be best for your specific needs.

compression moulding

Compression Moulding:

Advantages:

  • Lower tooling costs
  • Suitable for large parts
  • Minimal material waste
  • Good for low-volume production

Disadvantages:

  • Longer cycle times
  • Limited to simpler geometries
  • Less precise than injection moulding

Injection Moulding:

Advantages:rubber moulding

  • High-volume production capability
  • Excellent for complex geometries
  • Consistent part quality
  • Shorter cycle times

Disadvantages:

  • Higher initial tooling costs
  • Not ideal for very large parts
  • Potential for material degradation due to high shear forces

In my experience, compression moulding is often preferred for larger, simpler parts or when dealing with materials that are sensitive to high shear forces. On the other hand, injection moulding shines when it comes to high-volume production of complex, smaller parts with tight tolerances.

Ultimately, the choice between these two processes will depend on your specific project requirements, including part size, complexity, production volume, and material properties. In some cases, a hybrid approach combining elements of both methods may be the optimal solution.



Common Materials Used in Elastomer Moulding

The world of elastomer moulding encompasses a wide variety of materials, each with its own unique properties and applications. Here’s an overview of some of the most commonly used elastomers:

rubber moulded grommetsNatural Rubber (NR)

  • Excellent elasticity and tear resistance
  • Good for dynamic applications
  • Limited chemical and heat resistance

Silicone Rubber

  • Wide temperature range (-100°C to 300°C)
  • Excellent chemical resistance
  • Biocompatible and food-safe

Nitrile Rubber (NBR)

  • Good oil and fuel resistance
  • Moderate temperature range
  • Commonly used in automotive applications

Ethylene Propylene Diene Monomer (EPDM)

  • Excellent weather and ozone resistance
  • Good electrical insulation properties
  • Widely used in automotive and construction industries

Polyurethane (PU)

  • High abrasion resistance
  • Good load-bearing capacity
  • Versatile material with a wide range of hardness options

Fluoroelastomers (FKM)

  • Exceptional chemical resistance
  • High-temperature capabilities
  • Used in demanding aerospace and automotive applications

When selecting a material for elastomer moulding, we consider factors such as:

  • Operating temperature range
  • Chemical exposure
  • Mechanical properties required
  • Cost constraints
  • Regulatory requirements (e.g., FDA approval for food contact)

By carefully evaluating these factors, we can choose the most appropriate elastomer for a given application, ensuring optimal performance and longevity of the moulded part.

Rubber Comparison Chart

Applications of Elastomer Moulding Across Industries

Elastomer moulding has found its way into numerous industries, thanks to the versatility and unique properties of these materials. Let’s explore some of the key applications across various sectors:

Automotive Industry

  • Seals and gaskets for engines and transmissions
  • Vibration dampeners and suspension components
  • Weather stripping and door seals

Aerospace

  • Fuel system seals and O-rings
  • Cabin pressurization components
  • Vibration isolation mounts

Medical and Healthcare

  • Surgical instruments and equipment
  • Implantable devices
  • Drug delivery systems

Consumer Electronics

  • Protective cases and covers
  • Keypads and buttons
  • Waterproofing seals

Industrial Equipment

  • rubber to metal bondingConveyor belts and rollers
  • Pump and valve components
  • Seals for hydraulic and pneumatic systems

Construction

  • Gaiters
  • Expansion joints
  • Insulation materials

Sports and Recreation

  • Shoe soles and insoles
  • Protective gear and equipment
  • Grips for various sporting goods

The versatility of elastomer moulding allows us to create components that can withstand extreme conditions, provide excellent sealing properties, and offer superior comfort and performance. As technology advances, we continue to find new and innovative applications for elastomer moulded parts across an ever-expanding range of industries.



The Advantages of Elastomer Moulded Products

rubber overmouldingElastomer moulded products offer a multitude of advantages that make them indispensable in modern manufacturing. Let’s explore some of the key benefits:

Flexibility and Elasticity

  • Ability to deform under stress and return to original shape
  • Ideal for sealing applications and shock absorption

Durability and Longevity

  • Resistance to wear, tear, and fatigue
  • Extended product lifespan, reducing replacement frequency

Chemical Resistance

  • Many elastomers can withstand exposure to oils, fuels, and harsh chemicals
  • Crucial for applications in automotive and industrial sectors

Temperature Resistance

  • Certain elastomers can perform in extreme temperatures, both hot and cold
  • Essential for aerospace and automotive applications

Customisation

  • Wide range of hardness options and material properties
  • Ability to tailor products to specific performance requirements

Cost-Effectiveness

  • Efficient material usage through precise moulding processes
  • Potential for part consolidation, reducing assembly costs

Design Freedom

  • Ability to create complex geometries and intricate details
  • Integration of multiple functions into a single part

Lightweight

  • Contribute to overall weight reduction in various applications
  • Particularly valuable in automotive and aerospace industries

These advantages make elastomer moulded products an excellent choice for a wide range of applications. By leveraging these benefits, we can create innovative solutions that meet the demanding requirements of modern engineering and design challenges.

custom rubber moulding

Challenges and Solutions in Elastomer Moulding

While elastomer moulding offers numerous advantages, it also presents some challenges that we must address to ensure successful outcomes. Here are some common issues and their potential solutions:

Material Shrinkage

  • Challenge: Elastomers can shrink during cooling, affecting final part dimensions
  • Solution: Careful mould design with appropriate shrinkage allowances and precise process control

Air Traps and Voids

  • Challenge: Air can become trapped in the mould, creating defects in the final part
  • Solution: Proper venting in mould design and optimized injection parameters

Flash Formation

  • Challenge: Excess material can seep into mould parting lines
  • Solution: Precise mould alignment, optimised clamping force, and careful material selection

Inconsistent Curing

  • Challenge: Uneven curing can lead to variations in part properties
  • Solution: Uniform heat distribution in the mould and optimized curing cycles

Material Degradation

  • Challenge: Some elastomers can degrade under high shear forces or temperatures
  • Solution: Careful material selection and process optimization to minimize degradation

Mould Release Issues

  • Challenge: Parts may stick to the mould, causing damage or production delays
  • Solution: Use of appropriate release agents and optimized mould surface treatments

Dimensional Accuracy

  • Challenge: Achieving tight tolerances can be difficult with some elastomers
  • Solution: Advanced mould design, precise process control, and post-moulding operations when necessary

By addressing these challenges head-on, we can ensure the production of high-quality elastomer moulded parts that meet or exceed performance expectations. Continuous improvement in mould design, material formulation, and process control is key to overcoming these obstacles and pushing the boundaries of what’s possible in elastomer moulding.

custom rubber moulding

Selecting the Right Elastomer Moulding Process for Your Project

Choosing the appropriate elastomer moulding process is crucial for the success of your project. Here’s a step-by-step guide to help you make the right decision:

Assess Your Part Requirements

  • Geometry complexity
  • Size and volume
  • Tolerance requirements
  • Surface finish needs

Consider Production Volume

  • Low volume: Compression or transfer moulding might be suitable
  • High volume: Injection moulding could be more cost-effective

Evaluate Material Properties

  • Temperature resistance
  • Chemical compatibility
  • Mechanical properties (e.g., hardness, tensile strength)

Analyse Cost Factors

  • Tooling costs
  • Material costs
  • Production cycle times
  • Labor requirements

Rubber moulded GrommetsReview Quality and Consistency Needs

  • Injection moulding typically offers higher consistency for complex parts
  • Compression moulding may be preferable for larger, simpler shapes

Consider Post-Moulding Operations

  • Some processes may require additional finishing or assembly steps
  • Factor these into your decision-making process

Assess Equipment Availability

  • Consider your current manufacturing capabilities
  • Evaluate the need for outsourcing or new equipment investment

Consult with Experts

  • Engage with moulding specialists or material suppliers
  • Leverage their expertise to fine-tune your process selection

By carefully considering these factors, we can select the most appropriate elastomer moulding process for your specific project needs. Remember, the right choice will balance performance requirements, cost-effectiveness, and production efficiency to deliver the best possible outcome.

Sustainability in Elastomer Moulding: Current Trends and Future Outlook

As we move towards a more environmentally conscious future, sustainability in elastomer moulding has become a critical focus area. Here are some current trends and future prospects in this domain:

Bio-Based Elastomers

  • Development of elastomers derived from renewable resources
  • Reducing dependence on petroleum-based raw materials

Recycling and Circular Economy

  • Implementing closed-loop recycling systems for elastomer waste
  • Developing new technologies for breaking down and reusing elastomers

Energy-Efficient Processing

  • Adoption of electric and hybrid moulding machines
  • Optimization of process parameters to reduce energy consumption

Waste Reduction

  • Implementing advanced simulation tools to minimise material waste
  • Exploring additive manufacturing techniques for elastomers

Sustainable Additives

  • Replacing harmful additives with eco-friendly alternatives
  • Developing new additives that enhance biodegradability

Extended Product Lifecycles

  • Designing elastomer products for longevity and repairability
  • Encouraging refurbishment and reuse of elastomer components

Water Conservation

  • Implementing closed-loop cooling systems in moulding operations
  • Developing water-free cleaning processes for moulds and equipment

Green Supply Chain Management

  • Partnering with suppliers committed to sustainable practices
  • Optimising logistics to reduce carbon footprint

The future of elastomer moulding lies in balancing performance with environmental responsibility. As we continue to innovate, I believe we’ll see a growing emphasis on sustainable materials, processes, and end-of-life solutions. This shift will not only benefit the environment but also create new opportunities for differentiation and value creation in the elastomer moulding industry.

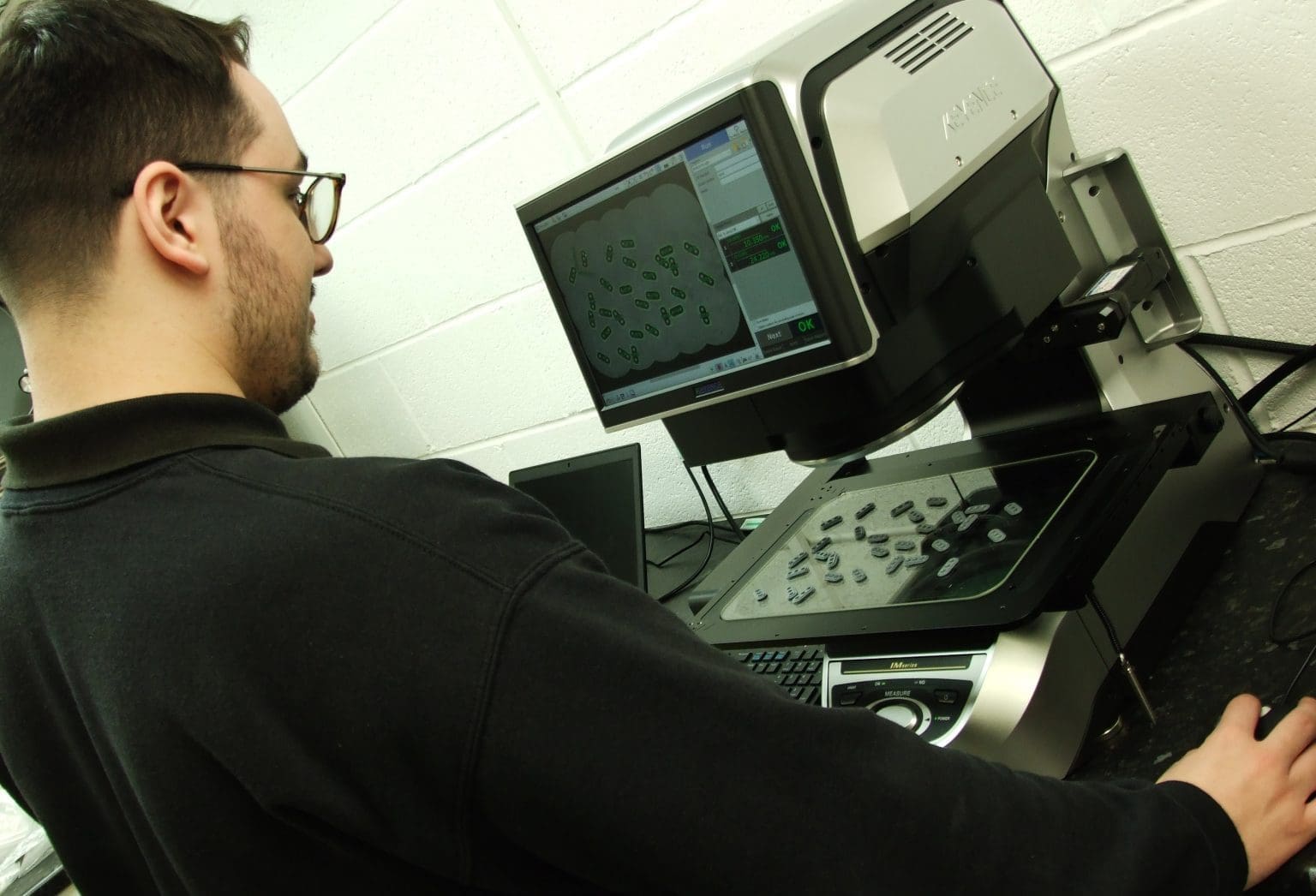

Measuring rubber moulded parts

Quality Control and Testing in Elastomer Moulding

Ensuring the quality and reliability of elastomer moulded parts is paramount to their successful application. Here’s an overview of the quality control measures and testing procedures we employ:

cryogenic-deflashingIncoming Material Inspection

  • Verification of raw material properties
  • Batch testing for consistency

In-Process Quality Control

  • Real-time monitoring of moulding parameters
  • Statistical process control (SPC) to detect variations

Visual Inspection

  • Checking for surface defects, flash, and dimensional accuracy
  • Often automated using vision systems for high-volume production

Dimensional Measurement

  • Use of coordinate measuring machines (CMM) for precise measurements
  • 3D scanning for complex geometries

Mechanical Testing

  • Tensile strength and elongation tests
  • Hardness testing (e.g., Shore A or Shore D scales)
  • Compression set and rebound resilience tests

Environmental Testing

  • Temperature cycling to simulate real-world conditions
  • Accelerated aging tests to predict long-term performance

Chemical Resistance Testing

  • Exposure to relevant chemicals to ensure material compatibility
  • Swelling and degradation tests

Functional Testing

  • Application-specific tests to simulate end-use conditions
  • Fatigue testing for dynamic applications

Non-Destructive Testing

  • X-ray inspection for internal defects
  • Ultrasonic testing for bond integrity in multi-material parts

Lot Traceability

  • Implementing systems to track materials and processes throughout production
  • Essential for quality assurance and potential recall management

By implementing a comprehensive quality control and testing regimen, we can ensure that elastomer moulded parts meet the required specifications and perform reliably in their intended applications. This approach not only minimises the risk of product failures but also helps in continuous improvement of our moulding processes.

elastomer moulding

Cost Considerations in Elastomer Moulding Projects

When undertaking an elastomer moulding project, it’s crucial to consider various cost factors to ensure economic viability. Here’s a breakdown of the key cost elements:

Material Costs

  • Raw elastomer compounds
  • Additives and fillers
  • Colorants and special ingredients

Tooling Costs

  • Mould design and fabrication
  • Prototype tooling
  • Production tooling maintenance and replacement

Equipment Costs

  • Moulding machines (purchase or lease)
  • Auxiliary equipment (e.g., material handling, cooling systems)
  • Maintenance and upgrades

Labor Costs

  • Machine operators
  • Quality control personnel
  • Engineering and technical support

Energy Costs

  • Electricity for moulding machines and auxiliary equipment
  • Heating and cooling utilities

Quality Control Costs

  • Testing equipment and consumables
  • Inspection labour
  • Potential scrap and rework

Overhead Costs

  • Facility expenses
  • Administrative costs
  • Regulatory compliance

Research and Development

  • Material development
  • Process optimization
  • New technology adoption

Logistics Costs

  • Raw material transportation
  • Finished product shipping
  • Inventory management

End-of-Life Considerations

  • Recycling or disposal costs
  • Environmental compliance expenses

To optimise costs in elastomer moulding projects, consider the following strategies:

  • Invest in efficient, high-quality tooling to reduce long-term production costs
  • Implement lean manufacturing principles to minimise waste
  • Explore automation opportunities to reduce labour costs
  • Optimise material selection and usage to balance performance and cost
  • Consider the total lifecycle cost, not just initial production expenses

By carefully evaluating and managing these cost factors, we can ensure that elastomer moulding projects remain economically viable while delivering high-quality products that meet customer requirements.

SRM Industries HQ

Innovations Shaping the Future of Elastomer Moulding

The field of elastomer moulding is constantly evolving, driven by technological advancements and changing market demands. Here are some exciting innovations that are shaping the future of this industry:

3D Printing of Elastomers

  • Additive manufacturing techniques for complex elastomeric parts
  • Potential for rapid prototyping and small-scale production

Smart Elastomers

  • Integration of sensors and conductive materials into elastomers
  • Development of self-healing and shape-memory elastomers

Nano-Enhanced Elastomers

  • Incorporation of nanoparticles to enhance material properties
  • Improved strength, durability, and functionality

Artificial Intelligence in Process Control

  • Machine learning algorithms for optimising moulding parameters
  • Predictive maintenance to reduce downtime

Bio inspired Elastomer Designs

  • Mimicking natural structures for enhanced performance
  • Development of gradient and anisotropic elastomers

Hybrid Moulding Techniques

  • Combination of different moulding processes for complex parts
  • Integration of elastomers with other materials in a single process

Sustainable Elastomer Solutions

  • Development of biodegradable and bio-based elastomers
  • Improved recycling technologies for elastomeric materials

Advanced Simulation Tools

  • Highly accurate virtual prototyping and mould flow analysis
  • Reduced development time and costs

These innovations are opening up new possibilities in product design, manufacturing efficiency, and material performance. As we continue to push the boundaries of what’s possible in elastomer moulding, I believe we’ll see even more exciting developments that will revolutionize various industries and applications.

Ready to take your elastomer moulding project to the next level? Let’s explore how these innovative techniques and materials can benefit your specific application. Contact our team of experts today to discover how we can help you achieve your manufacturing goals with cutting-edge elastomer moulding solutions.

Share This Post
