Rubber Injection Moulding – Enhancing Product Quality and Consistency

Rubber injection moulding is a manufacturing process that has revolutionised the production of rubber components across various industries. We will guide you through the intricacies of this technique and its impact on product quality and consistency.

At its core, injection moulding involves injecting heated rubber compound into a tool cavity under high pressure. This process allows for the creation of complex shapes and geometries that would be challenging or impossible to achieve through traditional moulding methods. The result is a precisely formed rubber part that meets exact specifications and maintains consistent quality across large production runs.

One of the key advantages of rubber injection moulding is its ability to produce parts with tight tolerances and excellent surface finishes. This precision is crucial in industries such as automotive, aerospace, and medical devices, where even the slightest deviation from specifications can have significant consequences. As we explore this topic further, we’ll uncover the many benefits and applications of this versatile manufacturing process.



The Evolution of Rubber Injection Moulding Technology

The journey of rubber injection moulding technology is a testament to human ingenuity and the constant drive for improvement in manufacturing processes. From its humble beginnings in the mid-20th century, this technology has undergone remarkable transformations, adapting to the ever-changing demands of industry and consumers alike.

In the early days, injection moulding was a relatively simple process, limited by the capabilities of the machinery and the properties of available rubber compounds. However, as materials science advanced and engineering innovations emerged, the potential of this technique began to unfold. We saw the introduction of more sophisticated injection moulding machines, capable of higher pressures and more precise control over the moulding process.

Today, rubber injection moulding has reached new heights of efficiency and precision. Modern machines are equipped with advanced sensors and control systems, allowing for real-time monitoring and adjustment of critical parameters such as temperature, pressure, and injection speed. This level of control ensures unprecedented consistency and quality in the final products, making rubber injection moulding an indispensable technology in many manufacturing sectors.

Key Advantages of Rubber Injection Moulding for Manufacturing

1. High Precision and Consistency: One of the most significant advantages of rubber injection moulding is its ability to produce parts with exceptional accuracy and consistency. This is particularly crucial for industries where tight tolerances are non-negotiable.
2. Efficiency in High-Volume Production: The process is highly automated, allowing for rapid production cycles and minimal downtime between shots. This makes it ideal for high-volume manufacturing scenarios.
3. Material Versatility: A wide range of rubber compounds can be used in injection moulding, including natural rubber, silicone, and various synthetic rubbers. This versatility allows manufacturers to choose the most suitable material for their specific application.
4. Complex Geometries: Rubber injection moulding excels at producing parts with intricate shapes and features that would be challenging or impossible to achieve with other manufacturing methods.
5. Minimal Material Waste: The process is highly efficient in terms of material usage, with minimal waste generated during production. This not only reduces costs but also aligns with sustainability goals.

How Rubber Injection Moulding Enhances Product Quality

In our pursuit of manufacturing excellence, we’ve found that rubber injection moulding plays a pivotal role in enhancing product quality across various industries. The process offers unparalleled control over the final product’s characteristics, ensuring that each part meets the highest standards of quality and performance.

One of the key ways it enhances product quality is through its ability to maintain consistent material properties throughout the part. Unlike other moulding techniques, injection moulding subjects the rubber compound to uniform pressure and temperature conditions, resulting in homogeneous material properties across the entire component. This uniformity is crucial for parts that need to perform consistently under stress or in challenging environments.

Moreover, the high-pressure injection process eliminates common defects such as air bubbles or voids within the rubber part. These imperfections can significantly compromise the strength, durability, and functionality of the component. By ensuring a dense, uniform structure, rubber injection moulding produces parts that are not only aesthetically pleasing but also structurally sound and reliable.

Achieving Consistency in Production with Rubber Injection Moulding

Consistency is the holy grail of manufacturing, and injection moulding excels in this aspect. The process’s inherent repeatability allows us to produce thousands of identical parts with minimal variation, a feat that is challenging to achieve with other manufacturing methods.

The key to this consistency lies in the precise control over every aspect of the moulding process. Modern injection moulding machines allow us to fine-tune parameters such as injection pressure, mould temperature, curing time, and cooling rate. By optimising these variables, we can create a stable production environment that yields consistent results, batch after batch.

Furthermore, the use of advanced tool designs, including multi-cavity moulds, ensures that each part is produced under identical conditions. This eliminates variations that might occur due to differences in mould positioning or heat distribution. The result is a production run where every part is a carbon copy of the next, meeting the strictest quality control standards.



Essential Equipment and Materials for Rubber Injection Moulding

To achieve the best results in rubber injection moulding, it’s crucial to have the right equipment and materials at our disposal. Here’s a breakdown of the essential components:

1. Injection Moulding Machine: The heart of the operation, featuring:
   • Injection unit
   • Clamping unit
   • Control system
2. Tools: Precision-engineered to create the desired part geometry, including:
   • Cavity
   • Core
   • Ejector system
3. Rubber Compounds: Carefully selected based on the application requirements:
   • Natural rubber
   • Silicone rubber
   • EPDM (Ethylene Propylene Diene Monomer)
   • Nitrile rubber
   • Viton
4. Auxiliary Equipment:
   • Material handling systems
   • Temperature control units
5. Quality Control Equipment:
   • Dimensional measuring tools
   • Material testing equipment
   • Visual inspection systems

By ensuring we have the right combination of these elements, we can set the stage for successful rubber injection moulding operations that consistently produce high-quality parts.

The Step-by-Step Process of Rubber Injection Moulding

Understanding the moulding process is crucial for appreciating its capabilities and optimising production. Here’s a detailed look at each step:

1. Material Preparation:
   • Select appropriate rubber compound
   • Pre-heat and soften the material
2. Mould Preparation:
   • Clean and inspect the mould
   • Apply release agent if necessary
   • Pre-heat the mould to optimal temperature
3. Injection:
   • Load softened rubber into the injection unit
   • Inject material into the mould cavity under high pressure
4. Curing:
   • Allow rubber to cure within the heated mould
   • Maintain precise temperature and pressure
5. Cooling:
   • Gradually cool the mould and part
   • Ensure uniform cooling to prevent warpage
6. Ejection:
   • Open the mould
   • Eject the finished part using ejector pins or robotic systems
7. Post-Processing:
   • Trim any excess material (flash)
   • Perform any necessary finishing operations
8. Quality Control:
   • Inspect parts for defects
   • Conduct dimensional and functional tests

By meticulously following these steps and fine-tuning each phase, we can consistently produce high-quality rubber parts that meet or exceed specifications.

Common Applications Across Industries

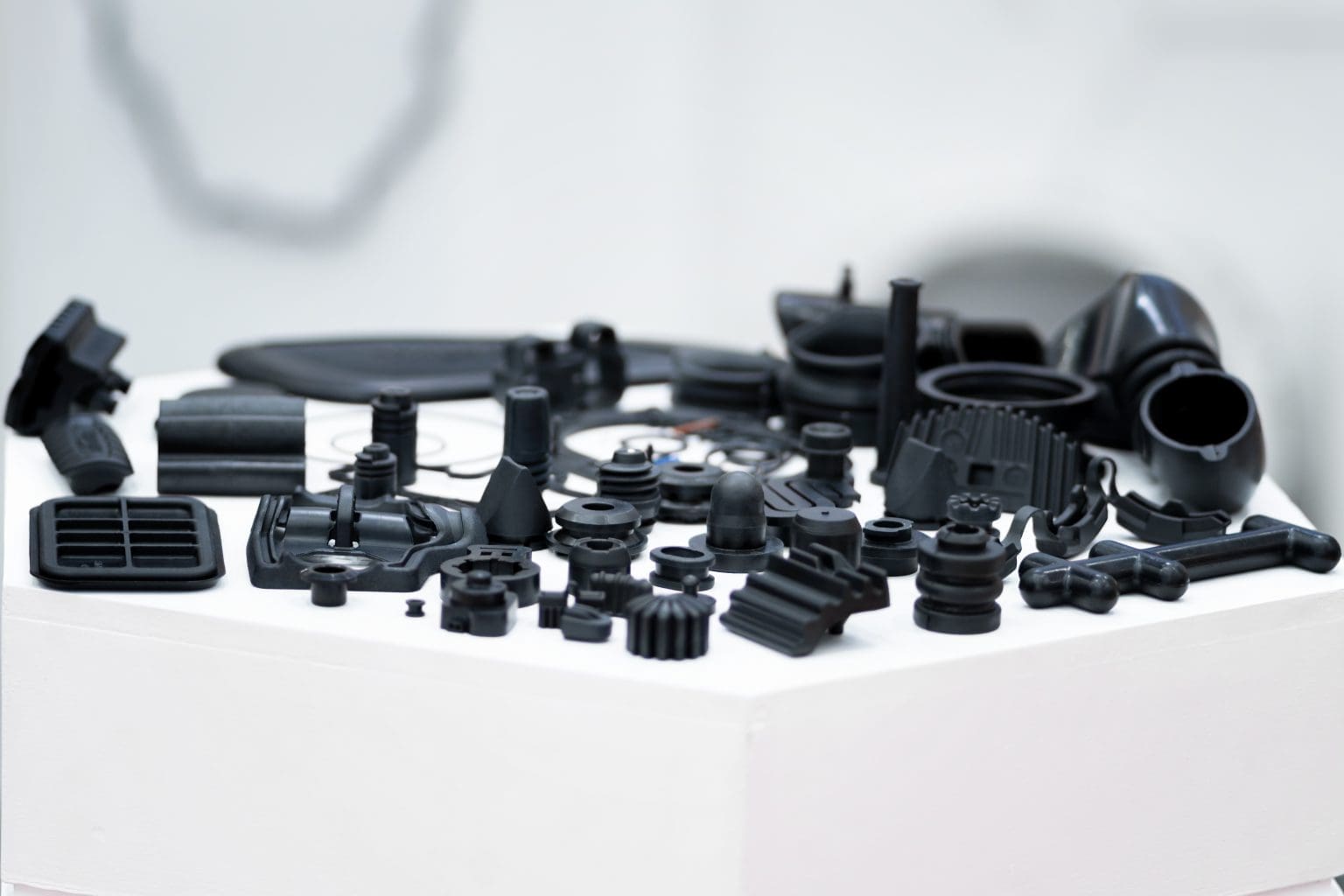

The versatility of rubber injection moulding has led to its adoption across a wide range of industries. Here are some of the most common applications:

1. Automotive:
   • Seals and gaskets
   • Vibration dampeners
   • Hoses and tubes
   • Interior trim components
2. Aerospace:
   • Fuel system components
   • Cabin seals
   • Vibration isolators
   • Electrical connector seals
3. Medical and Healthcare:
   • Syringe plungers
   • Catheter components
   • Seals for medical devices
   • Prosthetic components
4. Consumer Electronics:
   • Protective cases
   • Button pads
   • Waterproof seals
   • Vibration dampeners
5. Industrial Equipment:
   • Seals for hydraulic and pneumatic systems
   • Conveyor belt components
   • Pump diaphragms
   • Protective boots and covers
6. Sporting Goods:
   • Grips for rackets and clubs
   • Shoe soles
   • Goggle seals
   • Diving equipment components

This diverse range of applications showcases the adaptability and reliability of rubber injection moulding in meeting the unique requirements of various industries.



Overcoming Challenges in Rubber Injection Moulding

While rubber injection moulding offers numerous advantages, it’s not without its challenges. As experienced practitioners, we’ve encountered and overcome various obstacles to ensure consistent, high-quality production. Here are some common challenges and our strategies for addressing them:

1. Material Degradation: Rubber compounds can degrade if exposed to high temperatures for extended periods. We mitigate this by optimising cycle times and using temperature-controlled feed systems.
2. Mould Design Complexities: Complex part geometries can lead to filling and venting issues. Our approach involves sophisticated mould design software and simulation tools to identify and resolve potential problems before production begins.
3. Flash Formation: Excess material (flash) at part seams can be problematic. We combat this through precise mould alignment, optimised clamping force, and careful control of injection parameters.
4. Inconsistent Curing: Uneven curing can lead to variations in part properties. Our solution involves advanced mould temperature control systems and carefully calibrated curing cycles.
5. Air Traps: Trapped air can cause defects in the finished part. We address this through strategic vent placement in the mould and optimised injection speeds.

By proactively addressing these challenges, we ensure that our rubber injection moulding processes consistently yield high-quality parts that meet or exceed expectations.

Sustainability and Environmental Considerations

As responsible manufacturers, we’re keenly aware of the environmental impact of our processes. Rubber injection moulding, when implemented thoughtfully, can be a relatively sustainable manufacturing method. Here’s how we approach environmental considerations:

1. Material Efficiency: The process generates minimal waste, as excess material can often be reground and reused. We implement closed-loop material handling systems to maximise efficiency.
2. Energy Consumption: Modern injection moulding machines are designed for energy efficiency. We utilise servo-electric machines where possible, which consume significantly less energy than hydraulic systems.
3. Sustainable Materials: We’re constantly exploring and implementing more sustainable rubber compounds, including those derived from renewable resources or containing recycled content.
4. Process Optimisation: By fine-tuning our processes for maximum efficiency, we reduce energy consumption and material waste, contributing to a smaller carbon footprint.
5. End-of-Life Considerations: We design parts with recyclability in mind, considering how they can be easily separated and recycled at the end of their useful life.

Through these initiatives, we strive to make rubber moulding not just an efficient manufacturing process, but also an environmentally responsible one.

Future Trends and Innovations

As we look to the future, several exciting trends and innovations are shaping the landscape of rubber injection moulding:

1. Industry 4.0 Integration: Smart factories with interconnected systems are becoming a reality, allowing for real-time monitoring, predictive maintenance, and adaptive process control.
2. Advanced Materials: Development of new rubber compounds with enhanced properties, such as self-healing capabilities or improved thermal resistance, is expanding the potential applications of injection-moulded parts.
3. Additive Manufacturing Integration: 3D printing technologies are being used to create complex mould inserts, enabling even more intricate part designs.
4. Simulation and Digital Twins: Advanced simulation software and digital twin technology are improving mould design and process optimisation, reducing development time and costs.
5. Sustainability Innovations: New technologies for recycling rubber compounds and reducing energy consumption are making the process more environmentally friendly.

These advancements promise to further enhance the capabilities and efficiency of rubber injection moulding, cementing its position as a critical manufacturing technology for the future.

Choosing the Right Moulding Company

Selecting the right partner for your rubber injection moulding needs is crucial for ensuring the success of your project. Here are key factors to consider:

1. Technical Expertise: Look for a provider with a deep understanding of rubber materials and injection moulding processes.
2. Equipment and Capabilities: Ensure they have modern, well-maintained equipment and the capacity to handle your production volumes.
3. Quality Control Measures: Verify their quality assurance processes and certifications (e.g., ISO 9001).
4. Design Support: A provider offering design for manufacturability (DFM) assistance can help optimise your part design for injection moulding.
5. Material Knowledge: Choose a partner with expertise in a wide range of rubber compounds to ensure the best material selection for your application.
6. Sustainability Practices: If environmental considerations are important to you, inquire about their sustainability initiatives.

By carefully evaluating potential partners based on these criteria, you can find a rubber injection moulding service provider that aligns with your needs and values.

Conclusion

As we’ve explored throughout this article, rubber injection moulding is a powerful manufacturing technique that offers unparalleled precision, consistency, and efficiency. Its ability to produce complex, high-quality parts at scale makes it an invaluable process across numerous industries.

By understanding the intricacies of the process, staying abreast of technological advancements, and partnering with skilled service providers, manufacturers can fully harness the potential of rubber injection moulding. This technology not only enhances product quality and consistency but also opens up new possibilities for innovation and design.

As we look to the future, the continued evolution of rubber injection moulding promises even greater capabilities, improved sustainability, and expanded applications. By embracing these advancements and applying best practices, we can ensure that rubber injection moulding remains at the forefront of manufacturing technology, driving progress and innovation across industries.

Ready to elevate your manufacturing process with rubber injection moulding? Contact our team of experts today for a consultation on how we can tailor our rubber injection moulding services to meet your specific needs. Let’s work together to bring your vision to life with precision and efficiency. Reach out now and take the first step towards manufacturing excellence!
