A Guide to Custom Rubber Moulded Seals: Enhancing Industrial Performance

7th March 2025

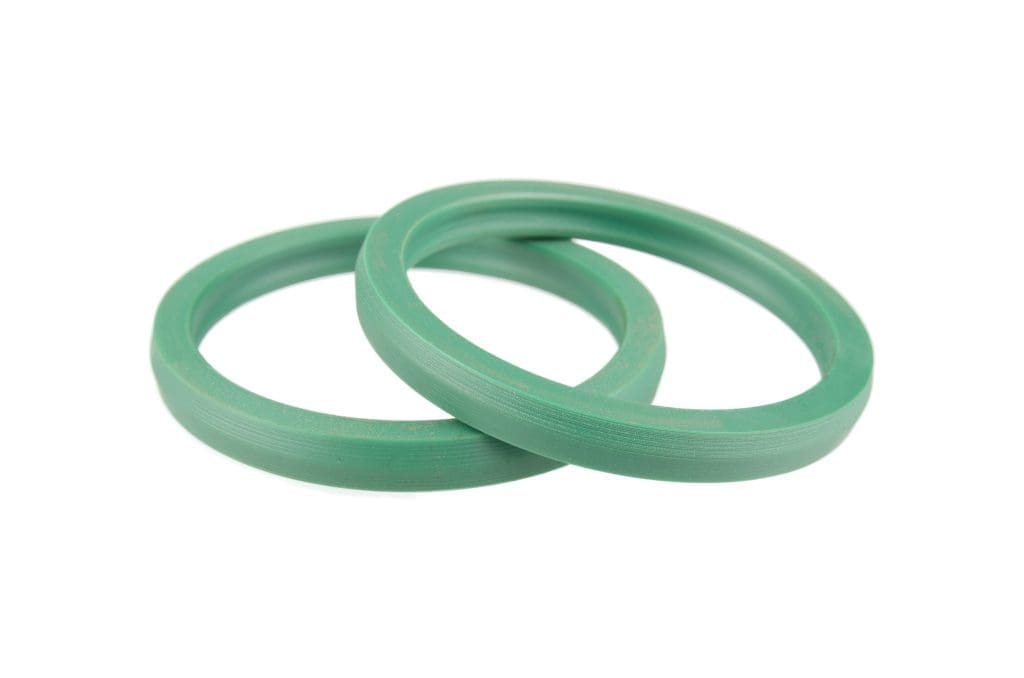

Understanding Custom Rubber Moulded Seals: An Introduction

Custom rubber moulded seals play a crucial role in various industrial applications, providing essential protection against leaks, contamination, and environmental factors.

In this comprehensive guide, we’ll delve into custom rubber moulded seals, exploring their importance, types, manufacturing processes, and the industries that benefit most from their use. We’ll also discuss key considerations for selecting the right seals, maintenance best practices, and emerging trends in seal technology.

Whether you’re an engineer, procurement specialist, or industry professional, this article will equip you with the knowledge needed to make informed decisions about custom rubber moulded seals for your specific applications.

The Importance of Seals in Industrial Applications

Seals are the unsung heroes of industrial machinery, working tirelessly to maintain system integrity and efficiency. The importance of high-quality seals cannot be overstated. They serve multiple critical functions:

Preventing Leakage: Seals act as barriers, preventing the escape of fluids, gases, or other substances from containment systems.
Maintaining Pressure: In pressurised systems, seals ensure that the desired pressure levels are maintained for optimal performance.
Protecting Against Contamination: By creating a tight seal, these components prevent the ingress of dirt, dust, and other contaminants that could compromise system functionality.
Reducing Friction: Many seals are designed to minimise friction between moving parts, enhancing efficiency and reducing wear.
Improving Safety: In hazardous environments, seals play a crucial role in containing dangerous substances and preventing accidents.

The reliability and longevity of industrial equipment often hinge on the quality and performance of their seals. Investing in custom rubber moulded seals tailored to specific applications can significantly enhance overall system performance and reduce maintenance costs.

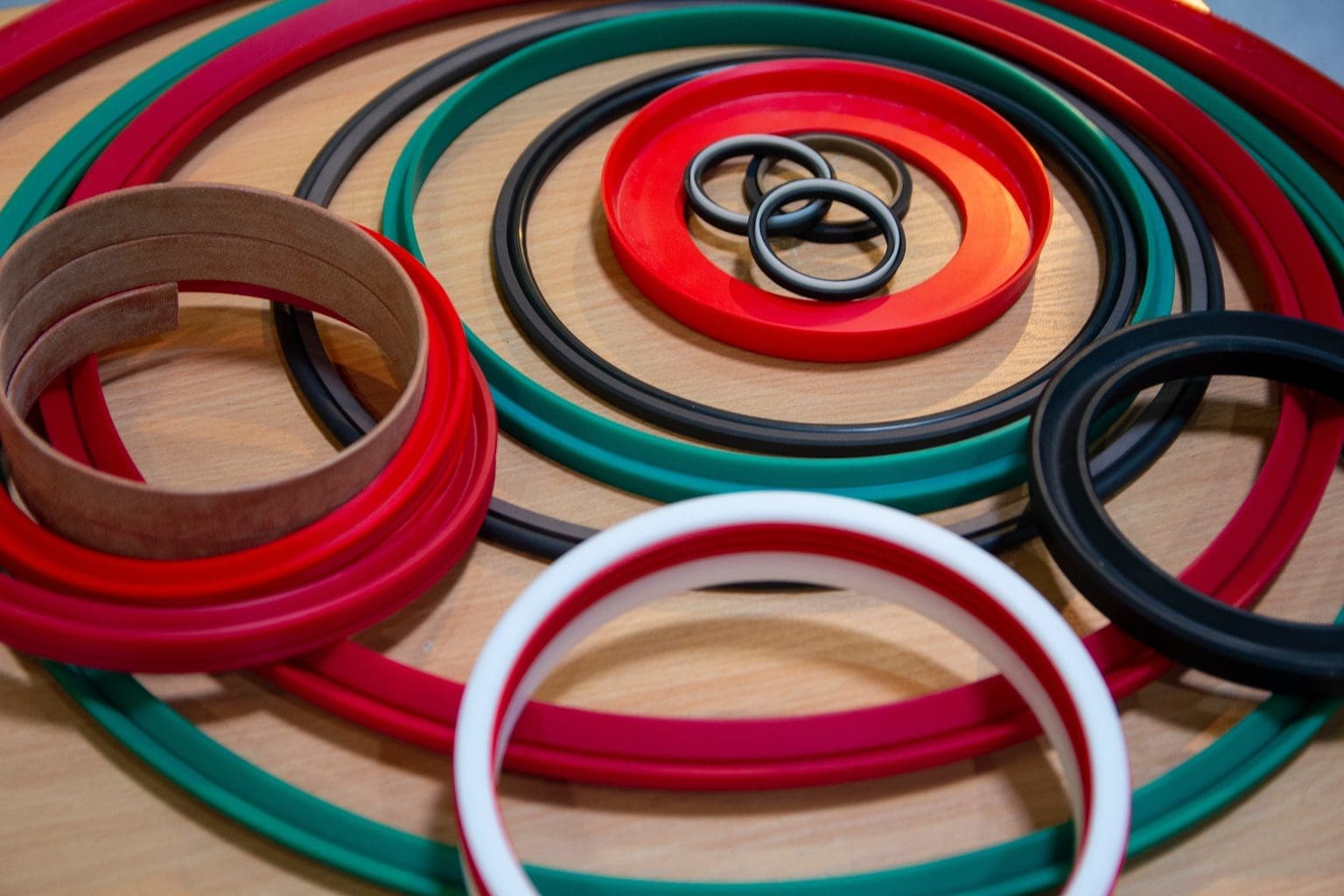

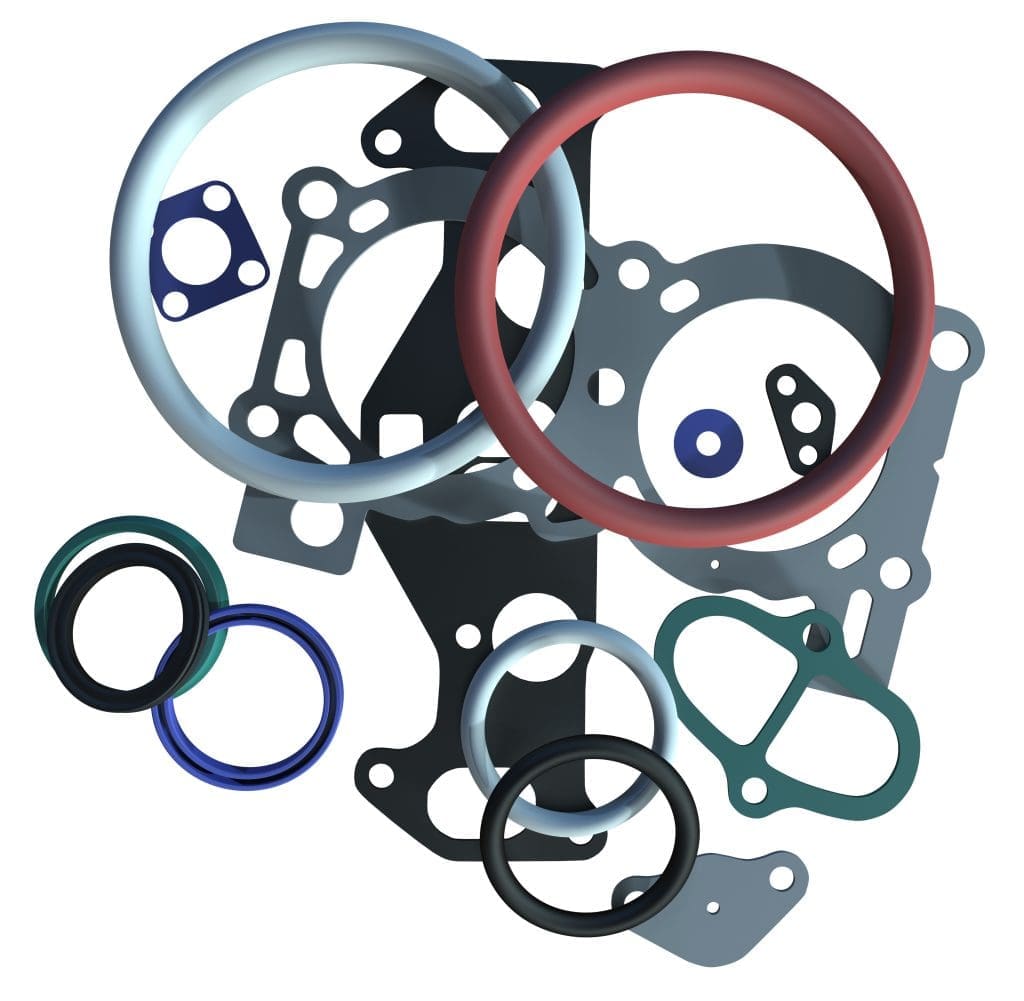

Types of Custom Rubber Moulded Seals

There are a wide variety of custom rubber moulded seals, each designed to meet specific requirements. Here are some of the most common types:

O-Rings
Gaskets
Diaphragms
Lip Seals
U-Cups
V-Rings
X-Rings
Custom Profile Seals

Each type of seal has its unique characteristics and applications. For instance, O-rings are versatile and widely used for static and dynamic sealing, while gaskets are ideal for creating seals between two flat surfaces. Diaphragms, on the other hand, are excellent for separating fluids or gases while allowing for pressure transmission.

Custom profile seals are particularly interesting as they can be designed to fit unique geometries and meet specific performance requirements. This flexibility makes them invaluable in specialised applications where off-the-shelf solutions fall short.

Materials Used in Rubber Moulded Seals Manufacturing

The choice of material is crucial in determining the performance and longevity of custom rubber moulded seals. Different materials offer their own distinct advantages:

Nitrile (NBR): Excellent oil and fuel resistance, good for general-purpose applications.
EPDM: Superior weathering and ozone resistance, ideal for outdoor applications.
Silicone: Wide temperature range tolerance, suitable for food and medical applications.
Viton(FKM): High chemical and heat resistance, perfect for harsh environments.
Neoprene: Good balance of properties, including oil and weather resistance.
Natural Rubber: High elasticity and tear resistance, suitable for dynamic applications.
Polyurethane: Excellent abrasion resistance and load-bearing capacity.

The selection of material depends on various factors, including:

Operating temperature range
Chemical compatibility
Pressure requirements
Abrasion resistance needs
Cost considerations

It’s essential to work closely with a knowledgeable manufacturer to select the most appropriate material for your specific application.

The Custom Rubber Moulding Process Explained

The process of creating custom rubber moulded seals is fascinating and complex. Having overseen numerous production runs, I can attest to the precision and expertise required at each stage. Here’s a simplified overview of the process:

Design and Prototyping:
- CAD software is used to create precise 3D models of the seal.
- Prototypes are developed and tested to ensure optimal performance.

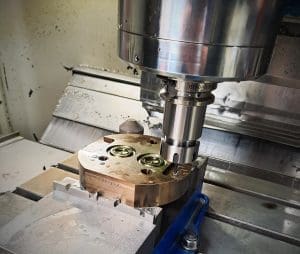

Tool Creation:
- Based on the approved design, a tool is engineered from steel.
- The tool is precision-machined to ensure accurate dimensions.
Material Preparation:
- The chosen rubber compound selected.
- The compound is preheated to improve flow characteristics.

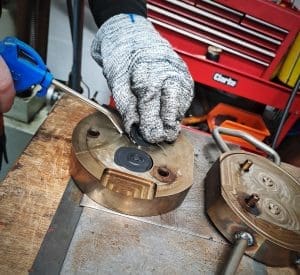

Moulding Process:
- The prepared rubber is injected or transferred into the tool cavity.
- Heat and pressure are applied to vulcanise the rubber, creating a stable, elastic form.
Cooling and Extraction:
- The moulded seal is allowed to cool and solidify.
- Once cooled, it is carefully extracted from the mould.
Finishing and Quality Control:
- Any excess material (flash) is trimmed off.
- The seal undergoes rigorous inspection and testing to ensure it meets specifications.

This process allows for the creation of seals with complex geometries and precise dimensions, tailored to specific application requirements.

Advantages of Custom Rubber Moulded Seals

Custom rubber moulded seals offer numerous advantages over off-the-shelf alternatives:

Tailored Performance: Custom seals are designed to meet specific operating conditions, ensuring optimal performance.
Improved Efficiency: By providing a perfect fit, custom seals can enhance system efficiency and reduce energy consumption.
Extended Lifespan: Seals tailored to the application often last longer, reducing maintenance frequency and costs.
Cost-Effective for Large Volumes: While initial tooling costs may be higher, custom moulding becomes more economical for large production runs.
Material Optimisation: The ability to choose the ideal material for each application ensures the best balance of properties and cost.
Complex Geometries: Custom moulding allows for the creation of seals with intricate shapes that would be difficult or impossible to achieve with standard products.
Quality Control: Custom manufacturing processes often involve stricter quality control measures, resulting in more consistent and reliable seals.
Intellectual Property Protection: Custom designs can be proprietary, providing a competitive advantage in the market.

These advantages make custom rubber moulded seals an attractive option for many industrial applications, particularly where performance and reliability are paramount.

Key Industries Benefiting from Custom Rubber Seals

Custom rubber moulded seals make a significant impact across various industries. Here are some key sectors that particularly benefit from these tailored solutions:

Automotive: Engine gaskets | Transmission seals | Weatherstripping
Aerospace: Cabin pressurisation seals | Fuel system components | Hydraulic system seals
Oil and Gas: Wellhead seals| Pipeline seals | Valve stem seals
Medical and Pharmaceutical: Syringe plungers | Catheter seals | Sterilisation equipment seals
Food and Beverage: Sanitary gaskets | Processing equipment seals
Chemical Processing: Pump seals | Reactor vessel seals | Agitator seals
Electronics: Waterproof enclosure seals | Connector seals | EMI shielding gaskets
Renewable Energy: Wind turbine seals | Solar panel edge seals | Hydroelectric turbine seals

Each of these industries has unique challenges and requirements, making custom rubber moulded seals an invaluable asset in ensuring optimal performance, safety, and efficiency.

Factors to Consider When Choosing Custom Rubber Moulded Seals

Selecting the right custom rubber moulded seal is crucial for ensuring optimal performance and longevity,key factors to consider include:

Operating Environment:
- Temperature range
- Pressure conditions
- Chemical exposure
- UV and ozone exposure
Material Properties:
- Chemical resistance
- Temperature resistance
- Compression set
- Tensile strength
- Elongation
Seal Design:
- Static or dynamic application
- Required compression force
- Gland design
- Surface finish requirements
Compliance and Certifications:
- Industry-specific standards (e.g., FDA, NSF, WRAS)
- Environmental regulations
Production Volume:
- Minimum order quantities
- Scalability of production
Cost Considerations:
- Initial tooling costs
- Per-unit costs at different volumes
- Lifecycle costs (including maintenance and replacement)
Lead Time:
- Design and prototyping time
- Production and delivery timeframes
Supplier Capabilities:
- Expertise
- Manufacturing capacity
- Quality control processes
- Technical support

By carefully evaluating these factors, you can ensure that the chosen custom rubber moulded seal will meet your specific needs and provide reliable performance throughout its intended lifespan.

Maintenance and Care of Rubber Moulded Seals

Proper maintenance and care are essential for maximising the lifespan and performance of custom rubber moulded seals:

Regular Inspection:
- Visually check seals for signs of wear, cracking, or deformation
- Look for changes in colour or texture that may indicate degradation
- Inspect surrounding areas for signs of leakage or contamination
Cleaning:
- Use appropriate cleaning agents that won’t degrade the rubber material
- Remove any accumulated dirt, debris, or contaminants
- Ensure seals are thoroughly dried after cleaning
Lubrication:
- Apply compatible lubricants to dynamic seals to reduce friction and wear
- Avoid over-lubrication, which can attract contaminants
Proper Installation:
- Follow manufacturer guidelines for installation techniques
- Use appropriate tools to avoid damaging the seal during installation
- Ensure correct alignment and seating of the seal
Storage:
- Store spare seals in a cool, dry place away from direct sunlight
- Keep seals in their original packaging until ready for use
- Avoid storing near ozone-generating equipment or chemicals
Scheduled Replacement:
- Develop a proactive replacement schedule based on operating conditions and seal lifespan
- Replace seals before they fail to prevent unexpected downtime
Environmental Control:
- Where possible, control the operating environment to minimise exposure to harmful conditions
- Use protective covers or shields to extend seal life in harsh environments
Documentation:
- Keep detailed records of seal performance, maintenance activities, and replacements
- Use this data to optimise maintenance schedules and identify potential issues

By implementing these maintenance practices, you can significantly extend the life of your custom rubber moulded seals and ensure consistent performance over time.

Environmental Impact and Sustainability in Rubber Seal Production

As sustainability becomes increasingly important in industrial processes, the rubber seal industry is adapting to meet these challenges. In recent years there have been several positive trends in this area:

Eco-Friendly Materials:
- Development of bio-based rubbers derived from renewable resources
- Reduction of harmful additives in rubber compounds
Energy-Efficient Manufacturing:
- Implementation of energy-saving equipment in production facilities
- Optimisation of moulding processes to reduce energy consumption
- Use of waste heat recovery systems
Waste Reduction:
- Implementation of closed-loop recycling for rubber scrap
- Adoption of precision moulding techniques to minimise material waste
- Development of biodegradable packaging materials
Water Conservation:
- Installation of water recycling systems in manufacturing plants
- Use of dry cooling methods where possible
- Implementation of water-efficient cleaning processes
Lifecycle Assessment:
- Conducting comprehensive lifecycle analyses to identify areas for improvement
- Designing seals for easier recycling at end-of-life
- Developing take-back programs for used seals
Sustainable Supply Chain:
- Sourcing raw materials from responsible suppliers
- Optimising logistics to reduce transportation emissions
- Encouraging sustainability practices among suppliers and partners
Regulatory Compliance:
- Adherence to environmental regulations such as REACH and RoHS
- Proactive adoption of stricter environmental standards
- Transparency in reporting environmental performance
Research and Development:
- Investing in R&D for more sustainable materials and processes
- Collaboration with academic institutions on sustainability projects
- Exploring alternative manufacturing methods with lower environmental impact

These efforts not only reduce the environmental footprint of rubber seal production but also often lead to improved product performance and cost savings in the long run.

Innovations in Custom Rubber Moulded Seal Technology

The field of custom rubber moulded seals is constantly evolving, with new technologies and innovations emerging regularly. As someone who closely follows these developments, I’m excited to share some of the most promising advancements:

Smart Seals:
- Integration of sensors for real-time monitoring of seal performance
- Predictive maintenance capabilities through data analysis
- Self-healing materials that can repair minor damage
Nanotechnology:
- Incorporation of nanoparticles to enhance specific material properties
- Development of nanocomposite rubbers with improved strength and durability
- Nano-coatings for enhanced chemical resistance and reduced friction
3D Printing:
- Rapid prototyping of complex seal designs
- On-demand production of custom seals in small quantities
- Development of 3D-printable rubber-like materials
Advanced Simulation Tools:
- Virtual testing of seal designs under various operating conditions
- Optimisation algorithms for seal design improvement
Multi-Material Seals:
- Co-moulding of different materials for optimised performance
- Development of seals with integrated metal or plastic components
- Gradient materials with varying properties across the seal profile
Surface Modification Techniques:
- Plasma treatment for improved adhesion and sealing properties
- Micro-texturing of seal surfaces for enhanced lubrication retention
- Application of low-friction coatings for reduced wear
Biodegradable Rubbers:
- Development of fully biodegradable elastomers for environmentally sensitive applications
- Research into bio-based alternatives to traditional synthetic rubbers
Energy Harvesting Seals:
- Integration of piezoelectric materials to generate small amounts of electricity from seal movement
- Potential applications in self-powered sensors and IoT devices

These innovations are pushing the boundaries of what’s possible with custom rubber moulded seals, opening up new applications and improving performance in existing ones.

How to Select a Reliable Custom Rubber Moulded Seal Manufacturer

Choosing the right manufacturer for your custom rubber moulded seals is crucial for ensuring quality, reliability, and performance. key factors to consider are:

Technical Expertise:
- Look for manufacturers with a strong engineering team
- Assess their knowledge of materials, design principles, and industry standards
- Consider their ability to provide design suggestions and optimisations
Manufacturing Capabilities:
- Evaluate their production capacity and equipment
- Check if they have the necessary technology for your specific requirements
- Assess their ability to handle different volumes, from prototypes to large production runs
Quality Control:
- Verify their quality management systems (e.g., ISO 9001 certification)
- Inquire about their testing and inspection procedures
- Ask for examples of their quality documentation and reporting
Industry Experience:
- Look for manufacturers with experience in your specific industry
- Check their track record with similar applications
Material Expertise:
- Assess their knowledge of different rubber compounds and their properties
- Check if they can source or compound specialised materials if needed
- Inquire about their material testing and validation processes
Certifications and Compliance:
- Verify relevant industry-specific certifications
- Check their compliance with environmental and safety regulations
- Assess their ability to provide necessary documentation for regulatory purposes
Customer Service and Support:
- Evaluate their responsiveness and communication
- Check if they offer technical support throughout the product lifecycle
- Assess their flexibility in accommodating changes or rush orders

By carefully evaluating potential manufacturers based on these criteria, you can select a partner that will provide high-quality custom rubber moulded seals and support your long-term success.

Cost Considerations and ROI of Custom Rubber Moulded Seals

When considering custom rubber moulded seals, it’s essential to look beyond the initial price tag and evaluate the overall return on investment (ROI). In my experience, the following factors play a crucial role in determining the true cost and value of custom seals:

Initial Costs:
- Tooling
- Material costs
- Setup and production costs
Volume Considerations:
- Economies of scale with larger production runs
- Minimum order quantities
- Inventory carrying costs
Performance Benefits:
- Improved efficiency of sealed systems
- Reduced downtime due to better reliability
- Lower maintenance costs
Lifespan and Durability:
- Extended seal life compared to off-the-shelf alternatives
- Reduced frequency of replacements
- Lower long-term material costs
Installation and Maintenance:
- Ease of installation due to custom fit
- Reduced labour costs for maintenance and replacement
- Potential for predictive maintenance with smart seal technology
Quality and Reliability:
- Reduced risk of failure and associated costs
- Lower warranty claims expenses
- Improved customer satisfaction and retention
Regulatory Compliance:
- Ability to meet specific industry standards
- Reduced risk of non-compliance penalties
- Potential for entering new markets or applications
Intellectual Property:
- Value of proprietary designs in maintaining competitive advantage
- Potential licensing opportunities
Energy Efficiency:
- Improved sealing can lead to energy savings in many applications
- Reduced operating costs over time
Environmental Impact:
- Potential for reduced waste due to longer lifespan
- Value of improved sustainability in marketing and corporate image

To calculate the ROI, consider the total cost of ownership over the expected life of the seal, including initial costs, maintenance, replacements, and potential savings or revenue increases due to improved performance.

Here’s a simple ROI calculation example:

Initial Investment = £10,000 (including tooling and first production run)
Annual Savings = £5,000 (from reduced maintenance and improved efficiency)
Lifespan = 5 years

ROI = (Total Savings – Initial Investment) / Initial Investment * 100 = (£25,000 – £10,000) / £10,000 * 100 = 150%

In this example, the custom seal investment would yield a 150% ROI over five years, demonstrating the potential long-term value of custom solutions.

Conclusion: The Future of Custom Rubber Moulded Seals in Industry

As we look to the future, it’s clear that custom rubber moulded seals will continue to play a crucial role in industrial applications. The trends and innovations we’ve discussed throughout this article point to an exciting future for the industry:

Increased Integration of Smart Technologies: We can expect to see more seals equipped with sensors and IoT capabilities, enabling real-time monitoring and predictive maintenance.
Advanced Materials: The development of new rubber compounds and hybrid materials will lead to seals with enhanced properties, capable of withstanding even more extreme conditions.
Sustainability Focus: The industry will continue to prioritise eco-friendly materials and manufacturing processes, driven by both regulatory pressures and market demand.
Customisation and Rapid Prototyping: Advancements in 3D printing and digital design tools will make custom seal solutions more accessible and cost-effective, even for smaller production runs.
Enhanced Simulation and Testing: Improved computational models and virtual testing capabilities will streamline the design process and reduce time-to-market for new seal designs.
Industry 4.0 Integration: Custom rubber moulded seal manufacturing will become increasingly automated and data-driven, improving efficiency and quality control.
Cross-Industry Collaboration: We’ll likely see more partnerships between seal manufacturers, material scientists, and end-users to drive innovation and solve complex sealing challenges.

As these trends unfold, the value proposition of custom rubber moulded seals will only strengthen. Companies that embrace these advanced sealing solutions will be well-positioned to improve their product performance, reduce maintenance costs, and gain a competitive edge in their respective markets.

In conclusion, the future of custom rubber moulded seals is bright, with endless possibilities for innovation and improvement. As an industry professional, I’m excited to see how these developments will shape the next generation of industrial applications and contribute to more efficient, reliable, and sustainable operations across various sectors.

Ready to explore how custom rubber moulded seals can enhance your industrial applications?

Contact our team of experts today for a more information or to discuss your requirements. We’ll work with you to manufacture seals that meet your specific needs, improving performance and reducing costs. Don’t settle for off-the-shelf solutions – invest in custom seals tailored to your needs.

Share This Post

GET IN TOUCH
